Description

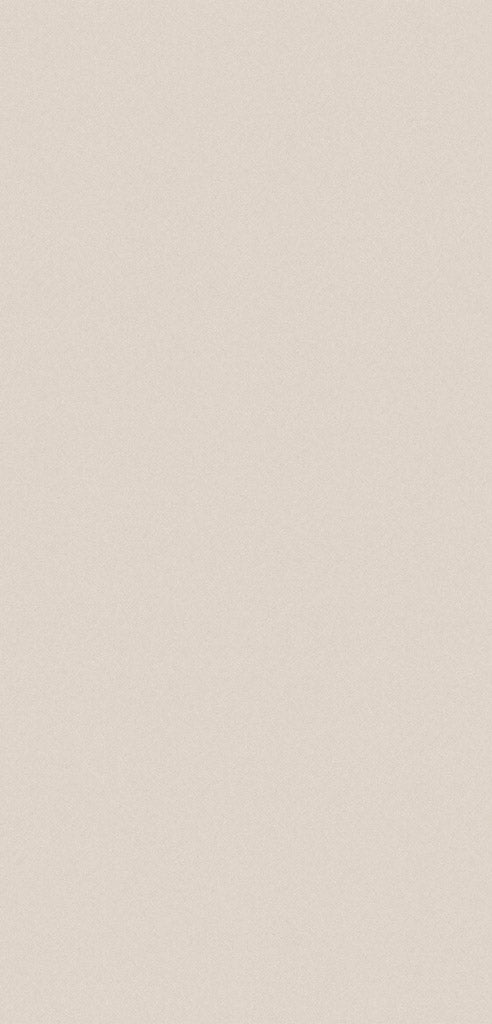

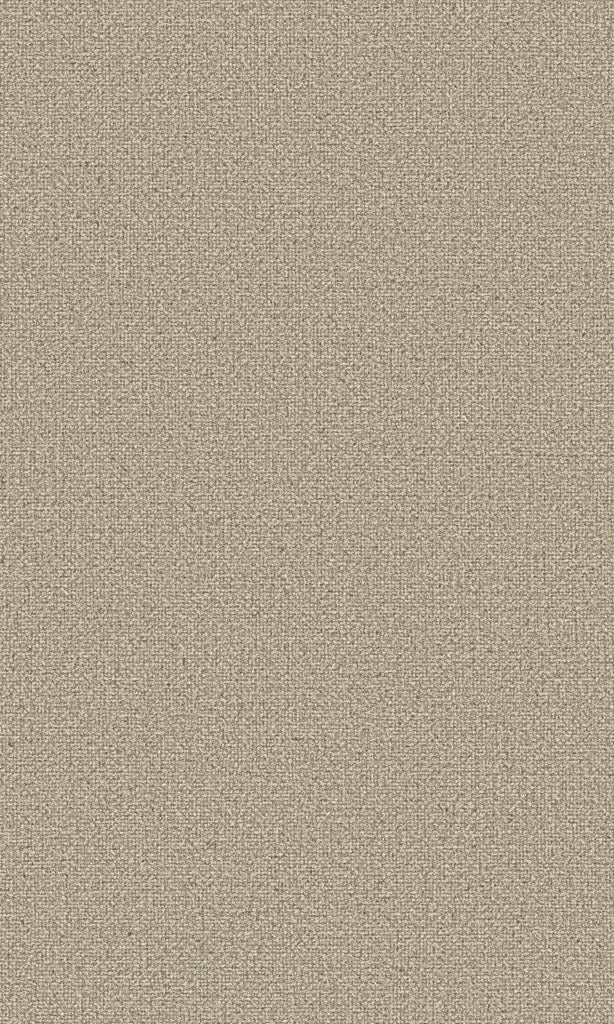

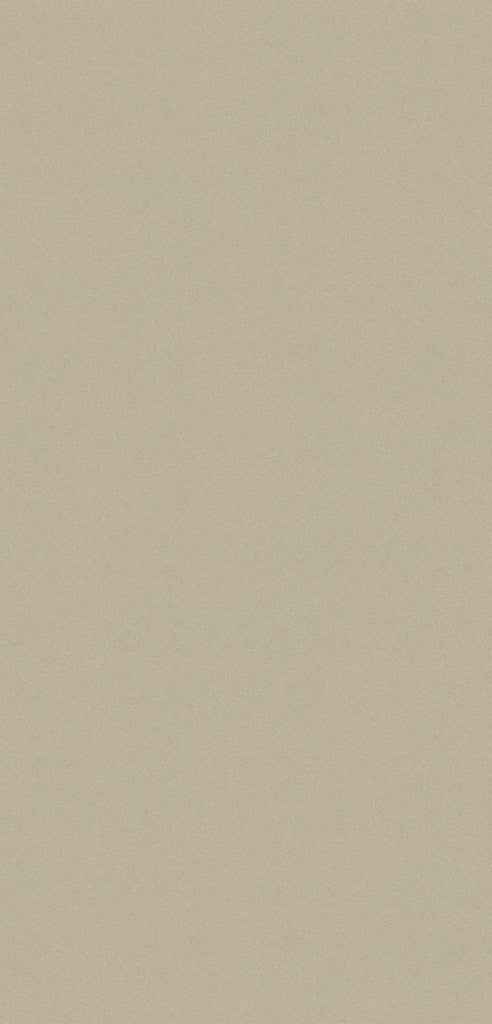

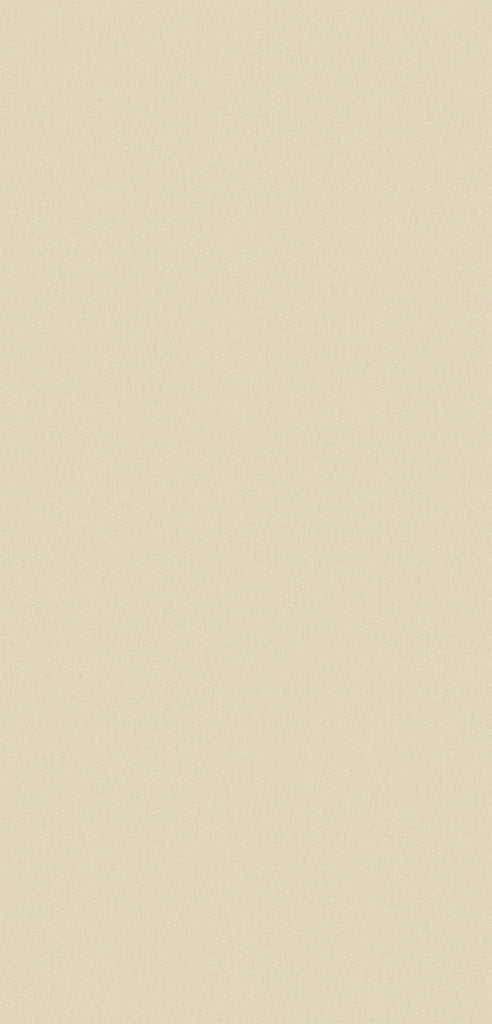

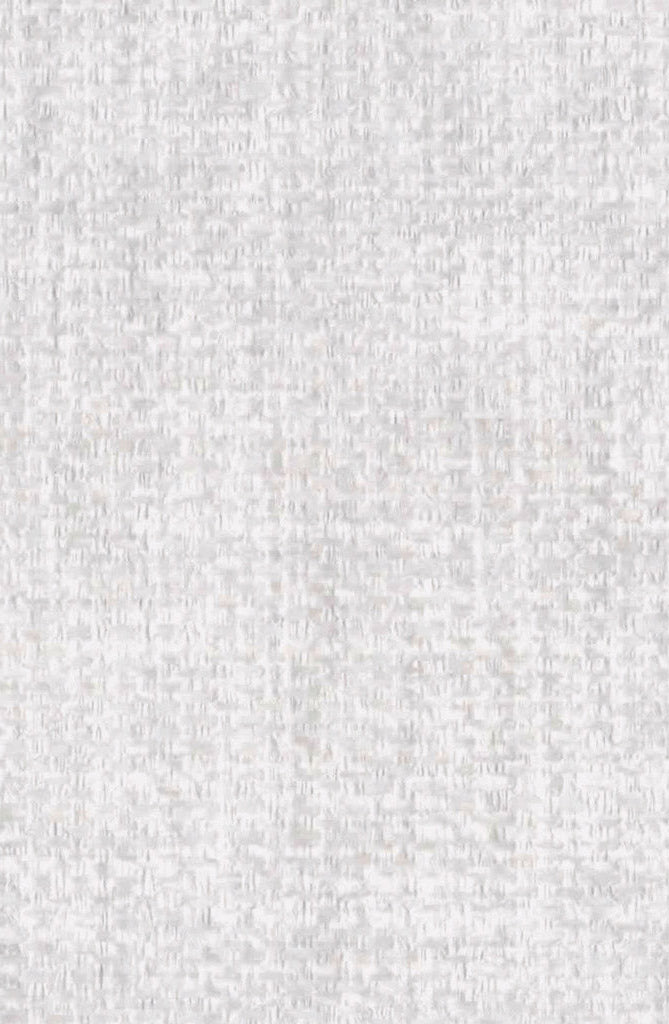

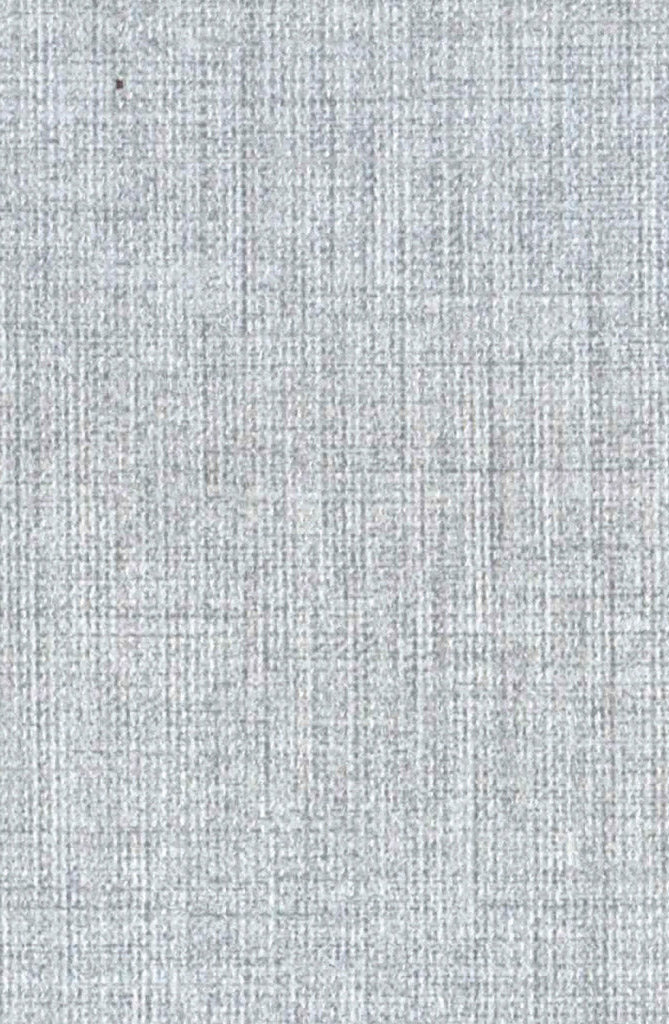

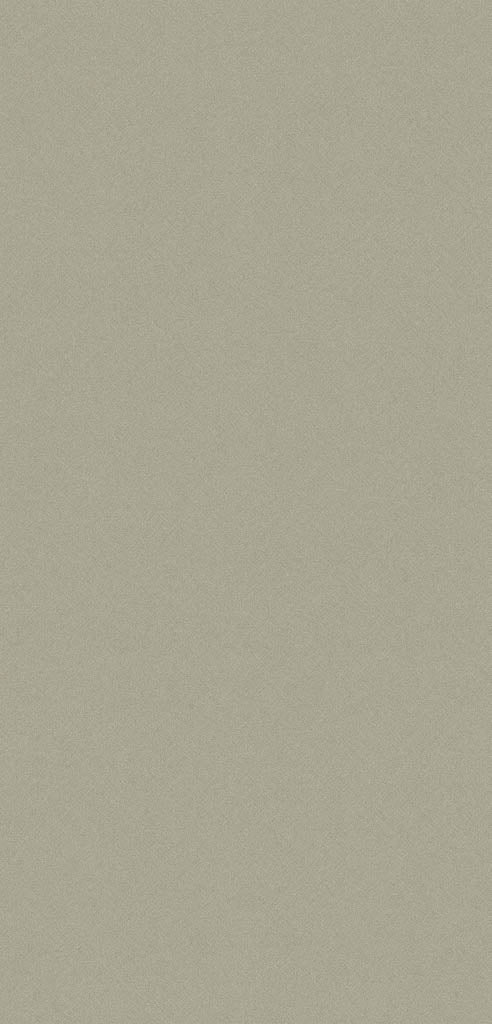

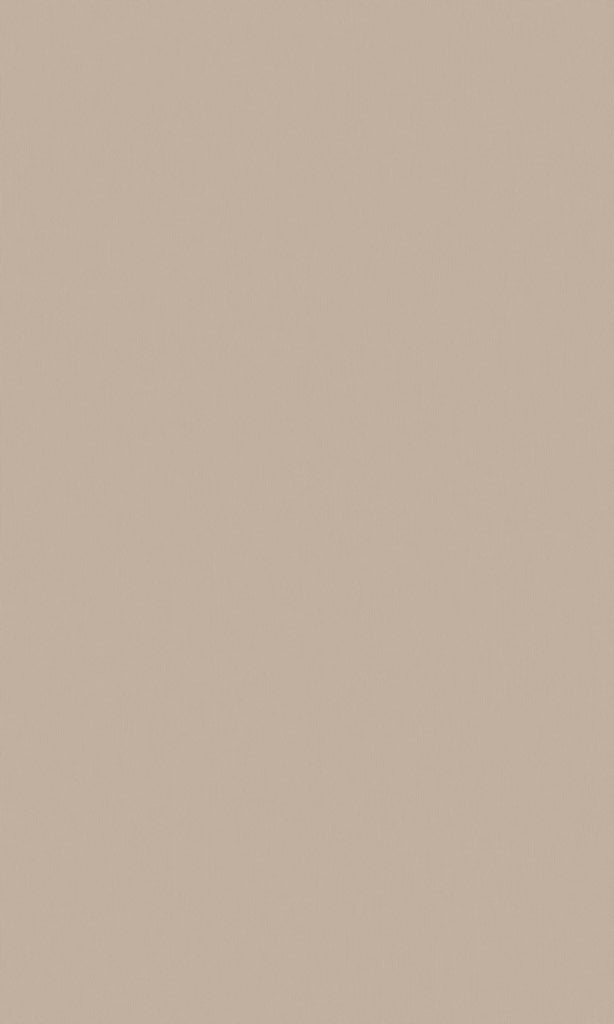

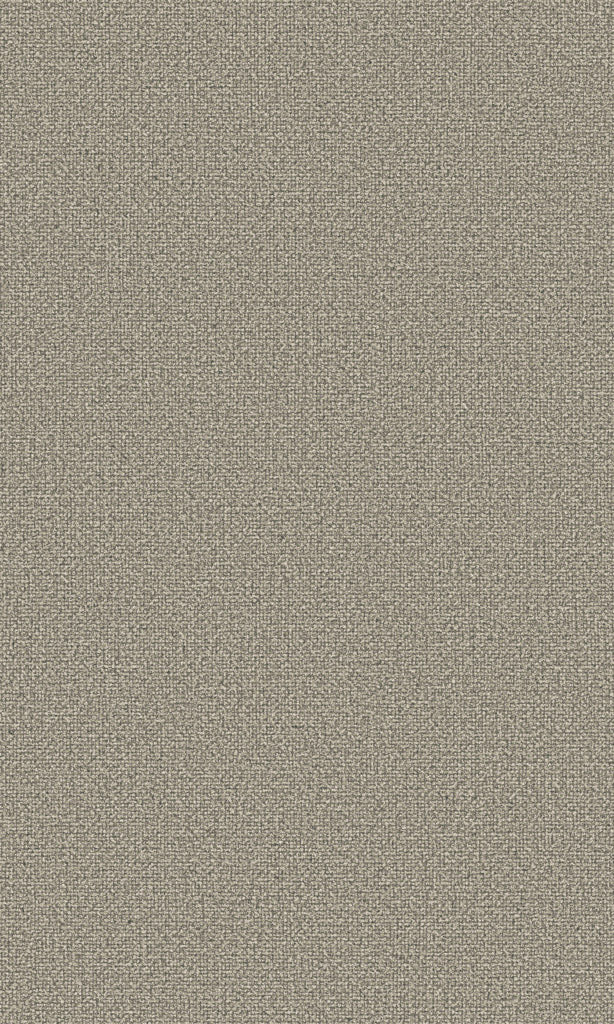

Casamonte’s Textile Architectural Film Collection invites designers to explore the art form of texture through the lens of woven materiality. Featuring intricate patterns and meticulously rendered surface finishes, this collection transforms walls, ceilings, and furnishings into tactile expressions of warmth and elegance.
Each design captures the nuanced beauty of fine textiles—from soft linen weaves to rich, dimensional fabrics—offering a visual and sensory experience that evokes crafted luxury. Lightweight and flexible, these architectural films deliver the look and feel of premium textiles with the durability and ease of application that modern spaces demand.

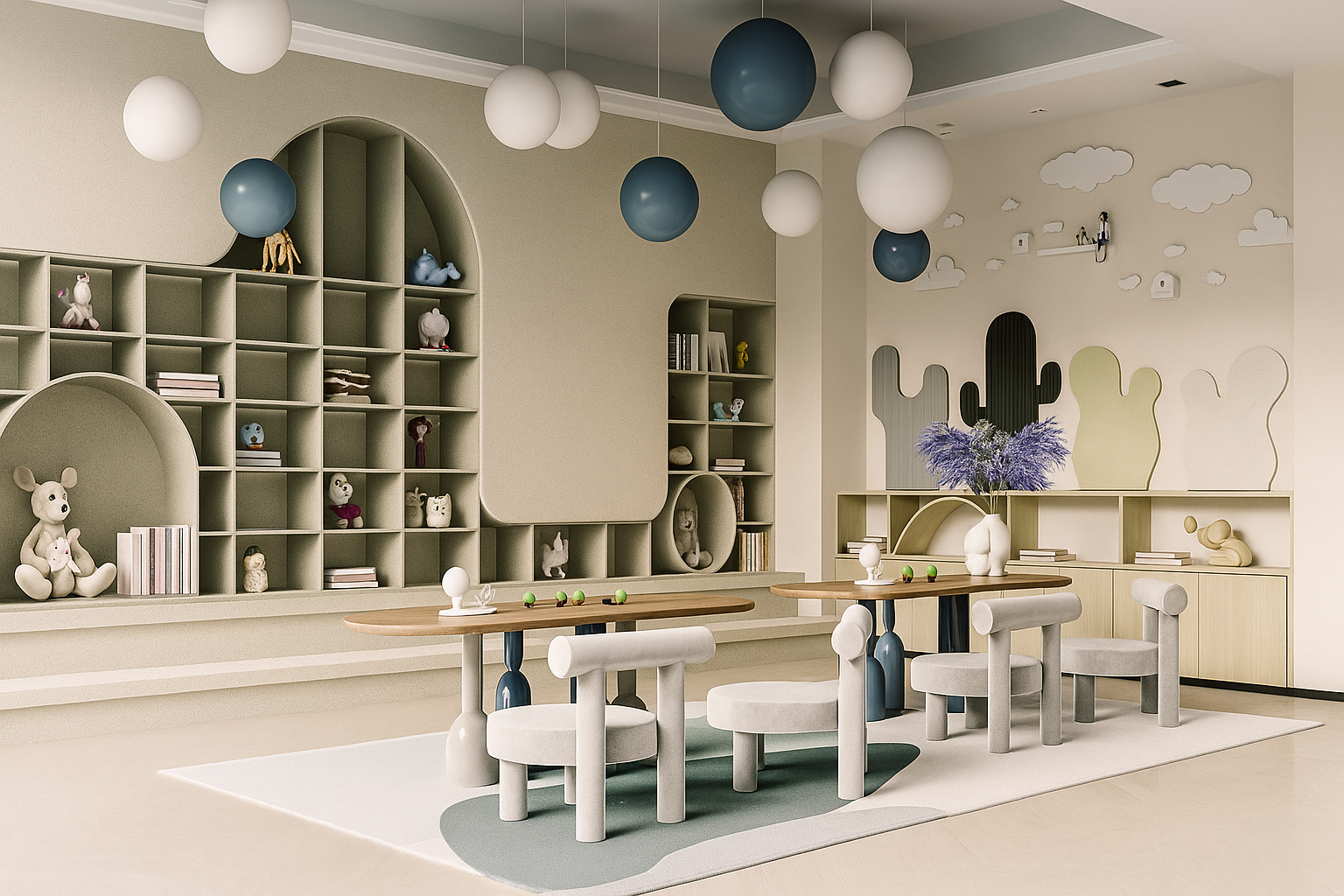

Engineered with eco-conscious innovation and designed to inspire, Casamonte’s Textile collection is ideal for projects seeking to envelop interiors in refined softness and elevated artistry. Whether layered into luxury hospitality environments, boutique retail spaces, or sophisticated residential settings, these surfaces invite touch, spark curiosity, and elevate every detail.
Casamonte Textile Collection — Living in Art. Mastering the Art of Softness and Texture.
Specifications
Collection Name | Casamonte Architectural Film |
|---|---|
Product | High-performance interior film with self-adhesive backing, suitable for various substrates and designed for ease of application on both flat and irregular surfaces. |
Composition | • Permanent & Yellow Adhesive (Flame Retardant) • Permanent & Clear Adhesive (Non-Flame Retardant) • Single Side PE coated release liner (Air-free) • Non-PE coated release liner (Air-free, PW, BW, NW, NE) |
Application Temperature | 15~25°C |
Compatible Substrates | • Iron, painted board • MDF • Calcium silicate board • Veneer • Stainless Steel • Aluminum • Melamine - baked steel board |
Dimensions | • Roll Sizes: • 122cm (48in) x 50M/R • 122cm (48in) x 30M/R (PW/NS/SF) • Thickness: 0.15~0.60mm (excluding release paper) |
Installation | • Maintain ambient temperature at 15-25°C for 72 hours before and 48 hours after installation • Use LX Hausys PM-04 primer for best adhesion • Install using overlapping method to prevent shrinkage • Maintain consistency in lot numbers • Clean and sand adherend surface thoroughly |
Storage | • 2 years shelf life from production date • Store in cool, dry place away from high temperature, humidity, and direct sunlight • Recommended storage: 20°C, 50% R.H. |
Performance | • Tensile Strength: (L)150350 / (W)100350 kgf/cm² (ASTM 882) • Elongation: (L)0400% / (W)0400% (ASTM 882) • Adhesion (24hr): ≥ 1,000g/in (180° peeling, PSTC-1) • Dimensional Stability: 0.8mm (100°C Oven, 2hr, adhered to aluminum plate) |
Primer | LX Primer (Water Based) - PM-04 |
Disclaimer | • Product specifications may change without notice • Variations in thickness may occur due to different embossing effects • Strong scratching or rubbing of treated surfaces may damage the ink layer |
