Description

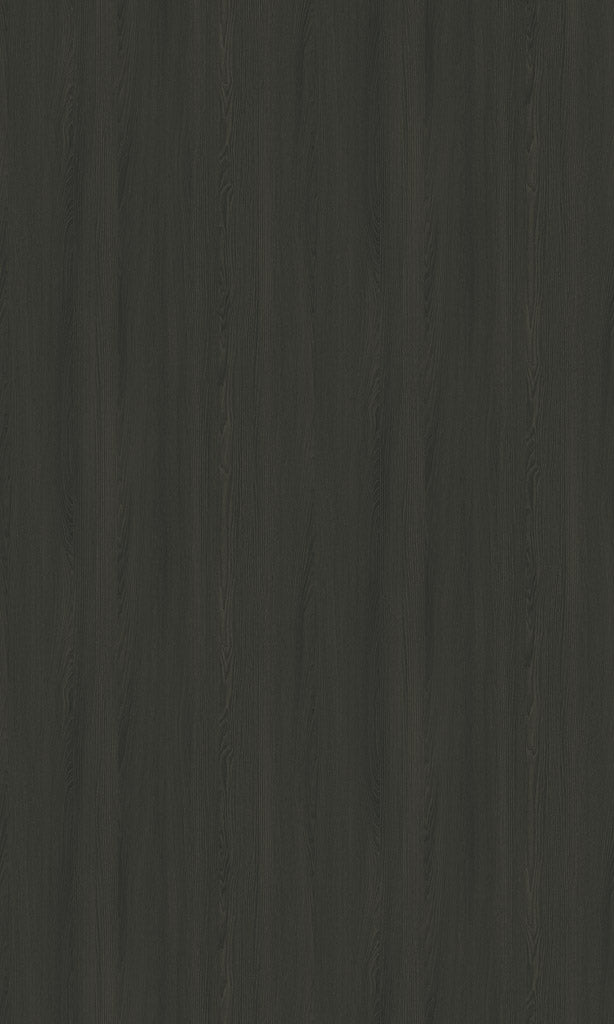

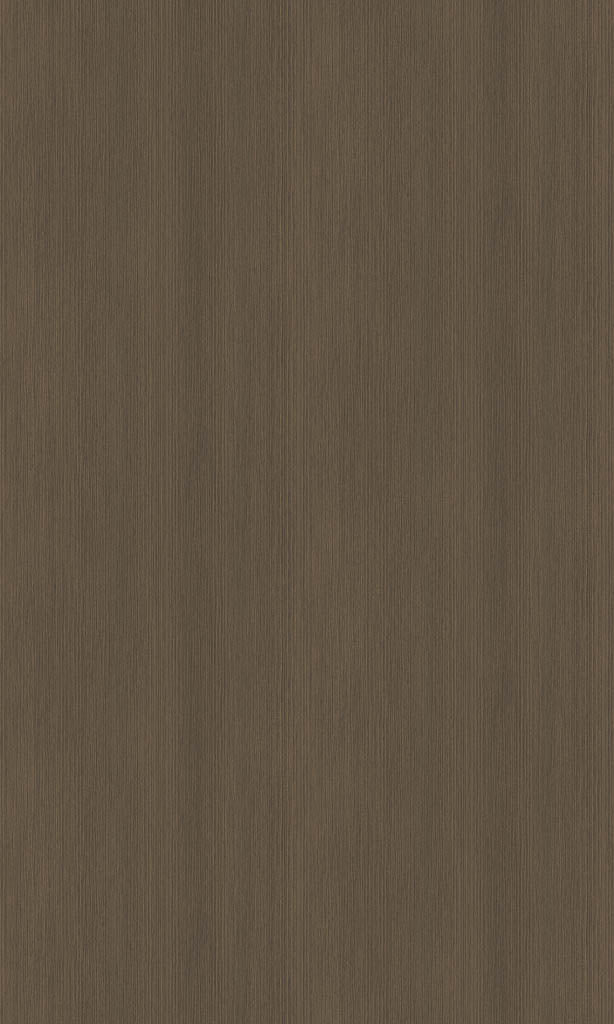

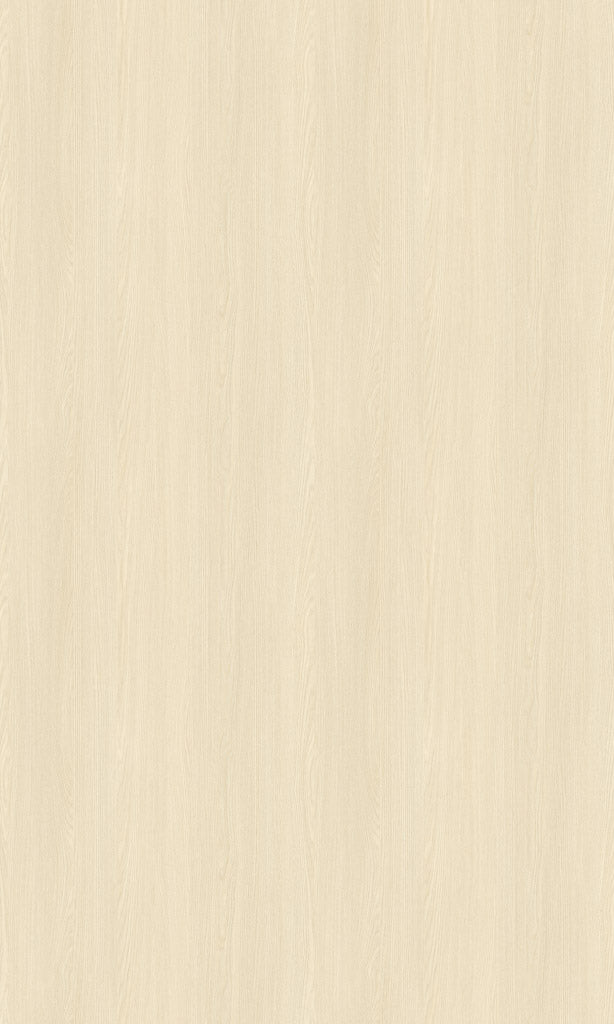

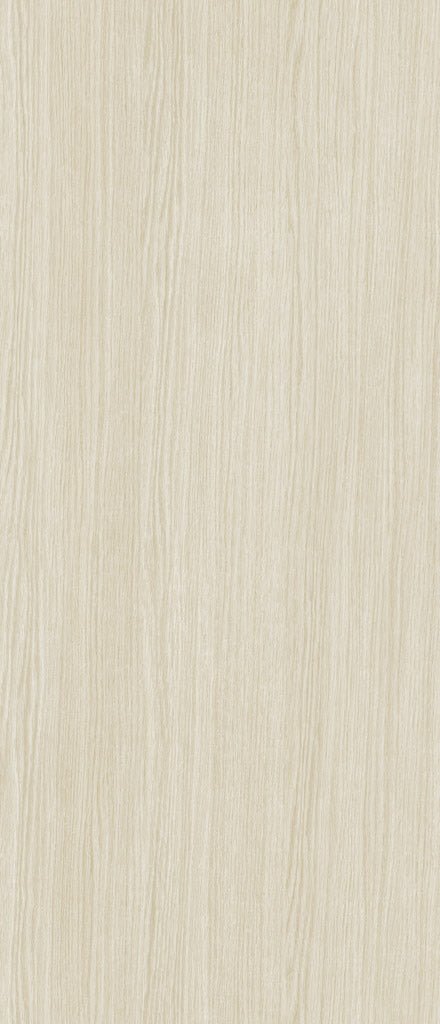

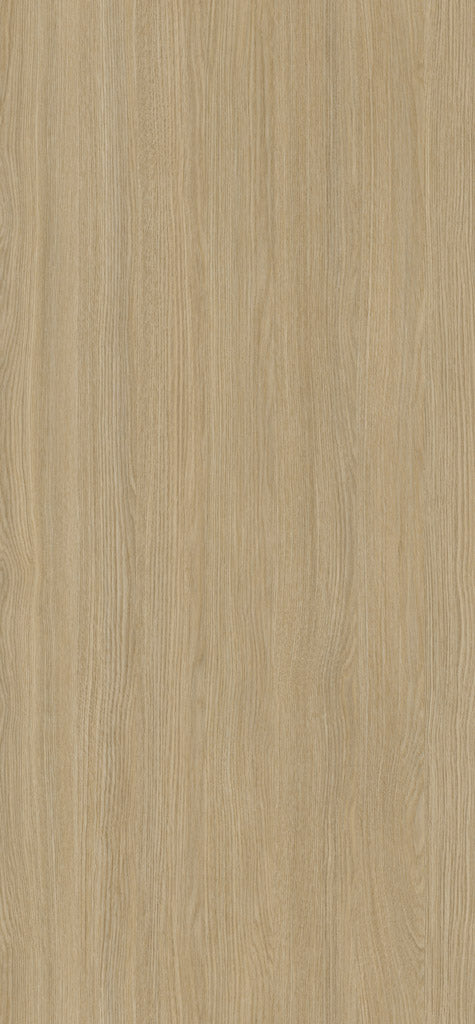

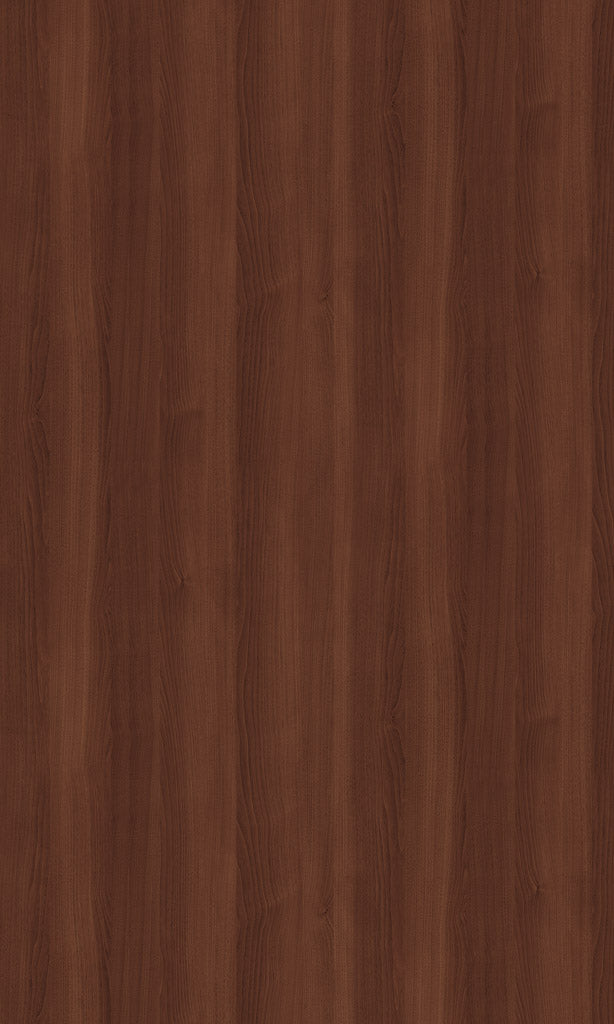

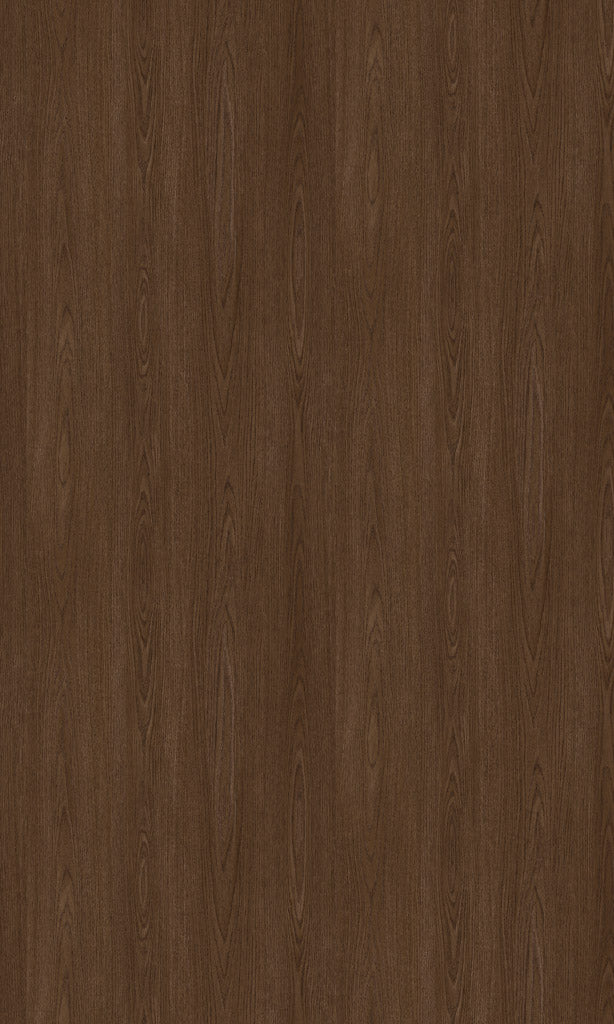

Discover the WOOD Collection by Casamonte — crafted to echo the timeless allure of Big Wood and Classic Wood textures, this collection brings a refined, organic warmth to interiors without the complexities or maintenance of traditional wood applications.
Key Features:
• Natural Realism: Subtle grain patterns and rich textures mirror genuine wood, delivering an effortlessly elegant aesthetic.

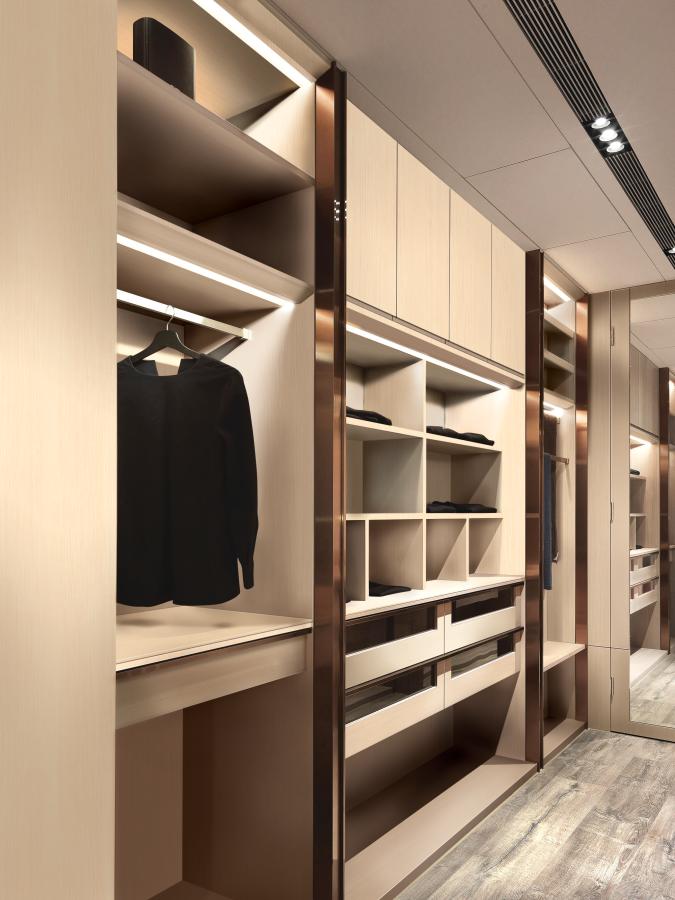

• Design Versatility: Perfect for walls, cabinetry, fixtures, and bespoke furnishings, seamlessly adapting to residential and commercial spaces alike.
• Built to Last: Resistant to scratches, stains, and daily wear, maintaining its pristine look for years to come.
• Sustainable Choice: Produced with eco-friendly materials to support responsible, conscious design.
• Simple Application: Engineered for easy installation, offering a flawless wood finish with minimal effort.
Elevate your projects with the WOOD Collection — timeless, tranquil, and beautifully sophisticated.
Specifications
Collection Name | Casamonte Architectural Film |
|---|---|
Product | High-performance interior film with self-adhesive backing, suitable for various substrates and designed for ease of application on both flat and irregular surfaces. |
Composition | • Permanent & Yellow Adhesive (Flame Retardant) • Permanent & Clear Adhesive (Non-Flame Retardant) • Single Side PE coated release liner (Air-free) • Non-PE coated release liner (Air-free, PW, BW, NW, NE) |
Application Temperature | 15~25°C |
Compatible Substrates | • Iron, painted board • MDF • Calcium silicate board • Veneer • Stainless Steel • Aluminum • Melamine - baked steel board |
Dimensions | • Roll Sizes: • 122cm (48in) x 50M/R • 122cm (48in) x 30M/R (PW/NS/SF) • Thickness: 0.15~0.60mm (excluding release paper) |
Installation | • Maintain ambient temperature at 15-25°C for 72 hours before and 48 hours after installation • Use LX Hausys PM-04 primer for best adhesion • Install using overlapping method to prevent shrinkage • Maintain consistency in lot numbers • Clean and sand adherend surface thoroughly |
Storage | • 2 years shelf life from production date • Store in cool, dry place away from high temperature, humidity, and direct sunlight • Recommended storage: 20°C, 50% R.H. |
Performance | • Tensile Strength: (L)150350 / (W)100350 kgf/cm² (ASTM 882) • Elongation: (L)0400% / (W)0400% (ASTM 882) • Adhesion (24hr): ≥ 1,000g/in (180° peeling, PSTC-1) • Dimensional Stability: 0.8mm (100°C Oven, 2hr, adhered to aluminum plate) |
Primer | LX Primer (Water Based) - PM-04 |
Disclaimer | • Product specifications may change without notice • Variations in thickness may occur due to different embossing effects • Strong scratching or rubbing of treated surfaces may damage the ink layer |
