Description

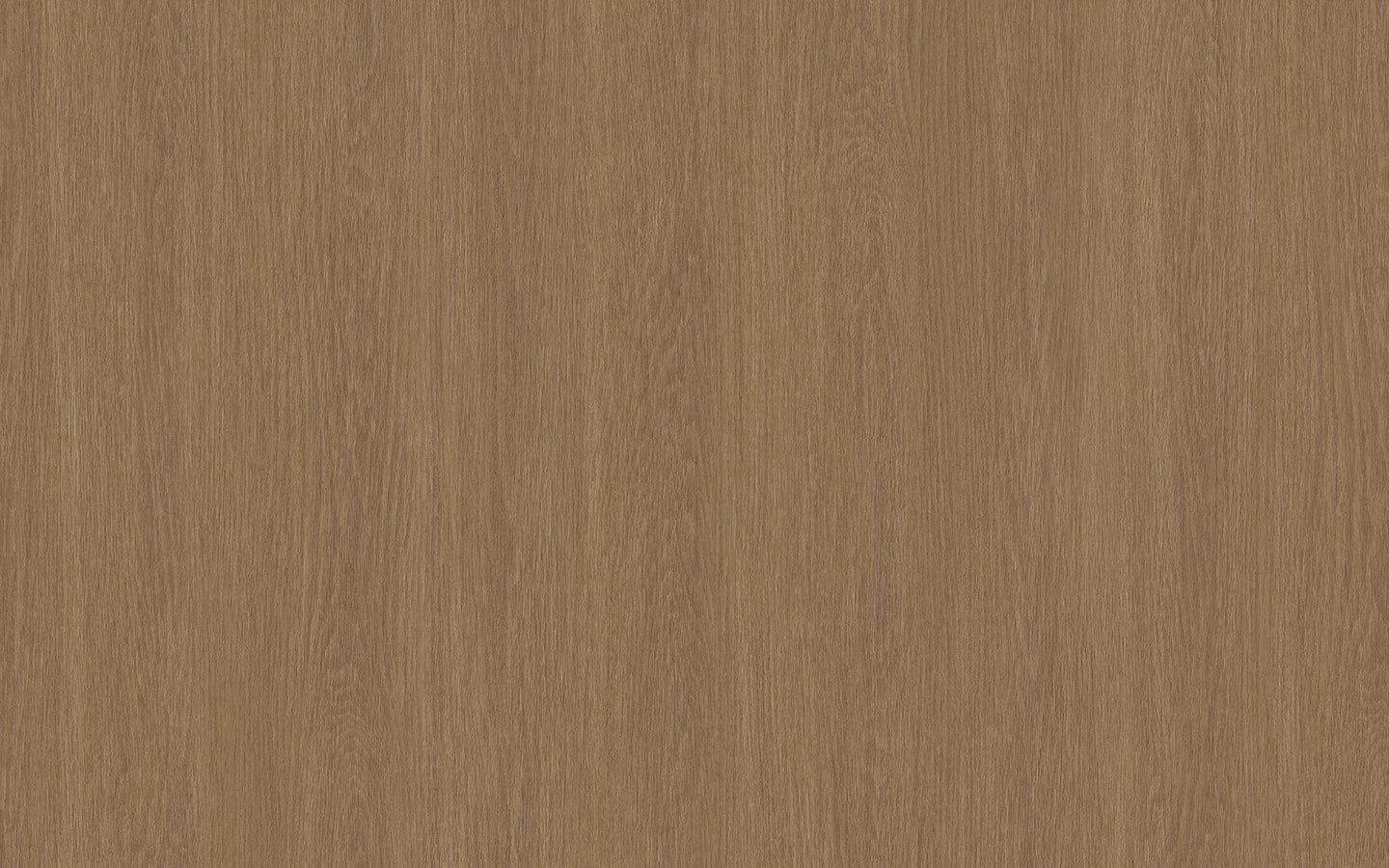

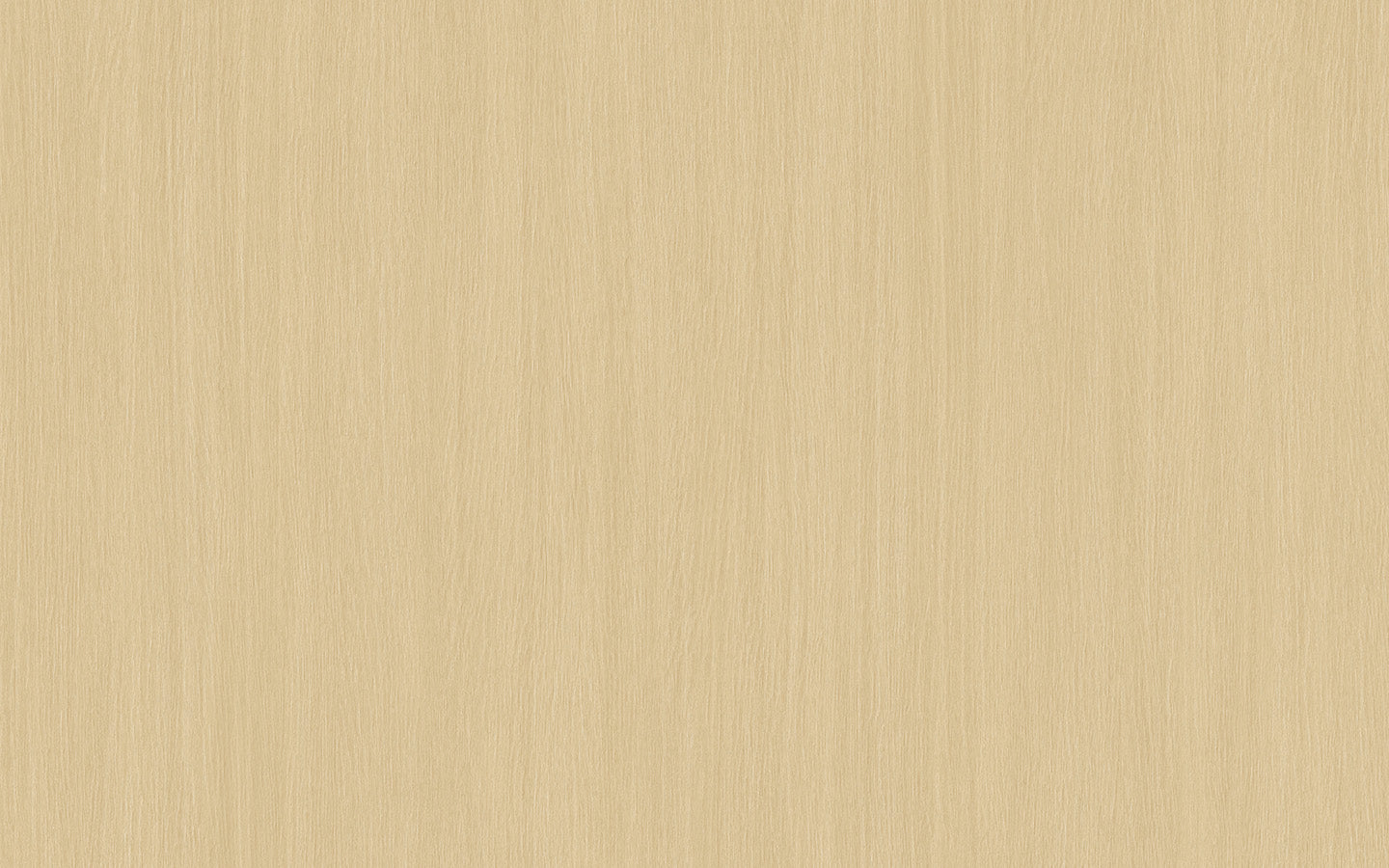

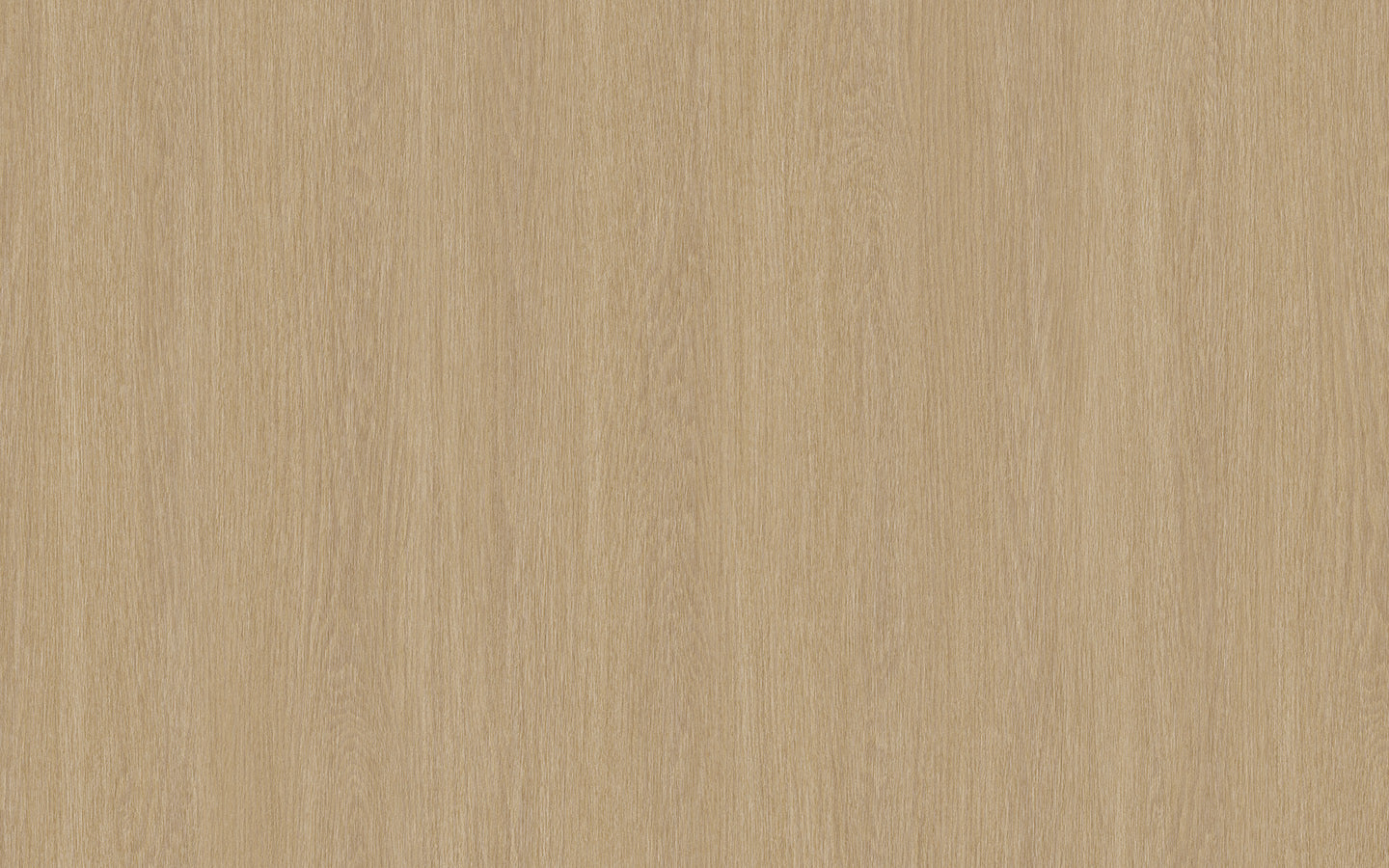

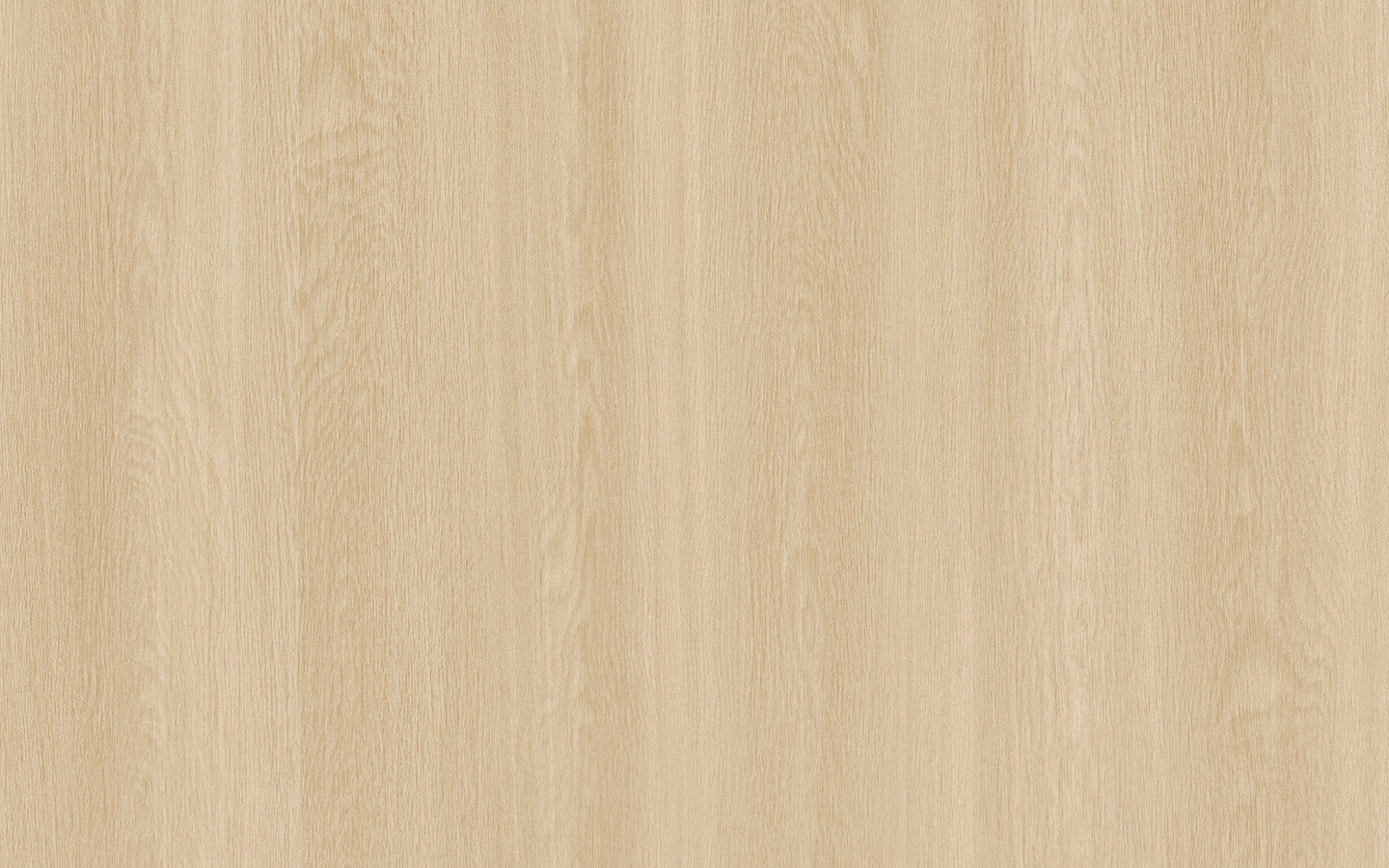

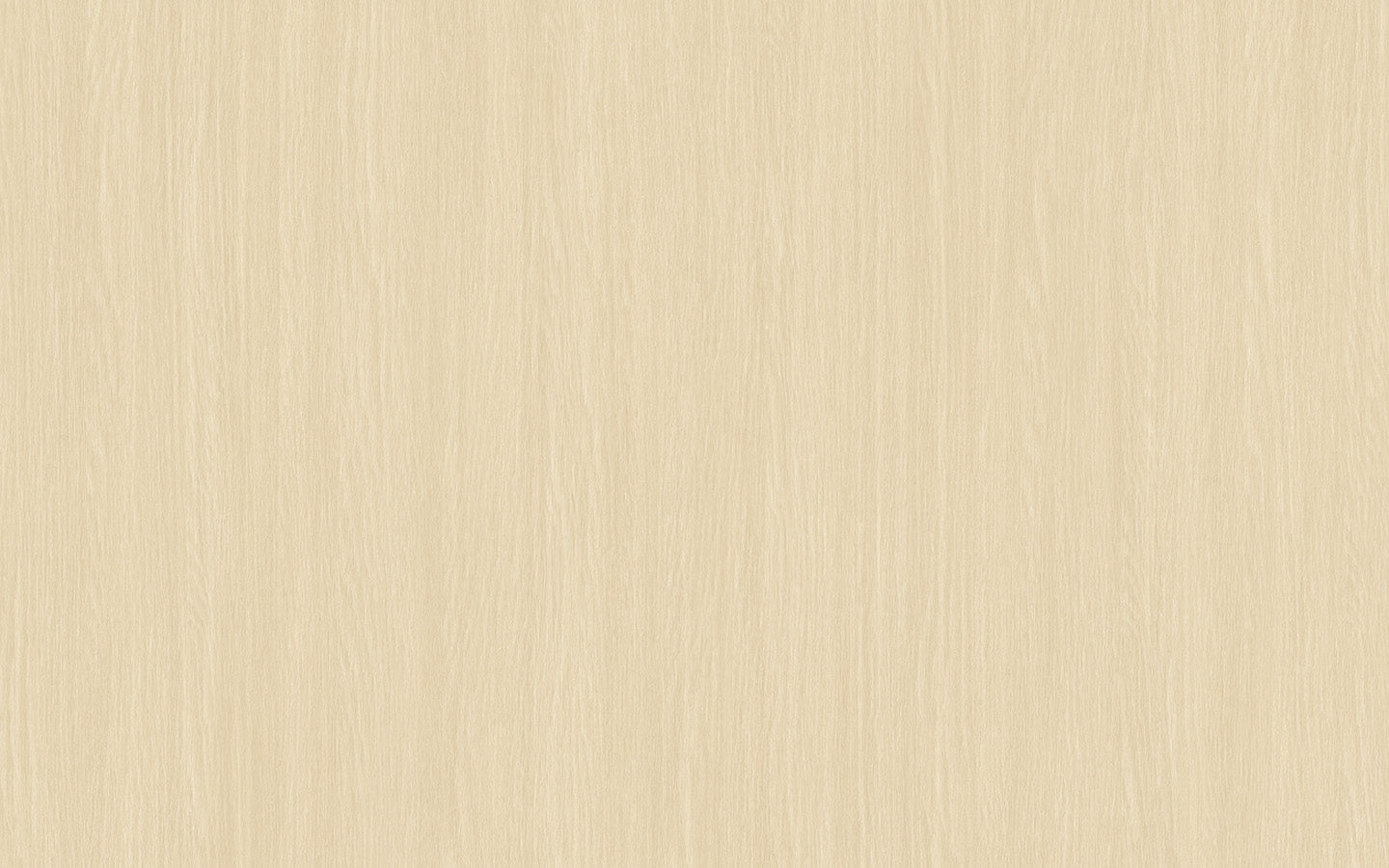

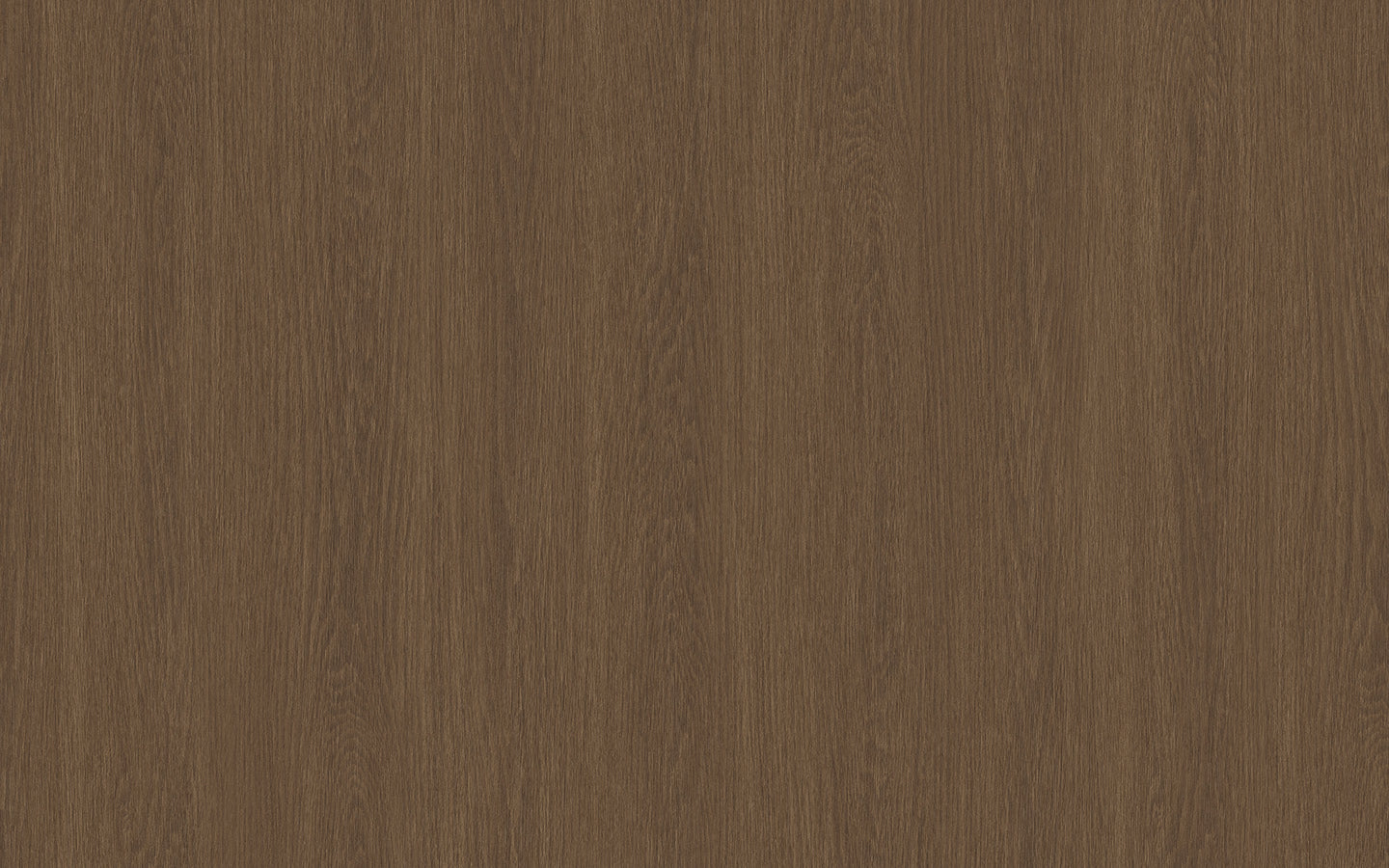

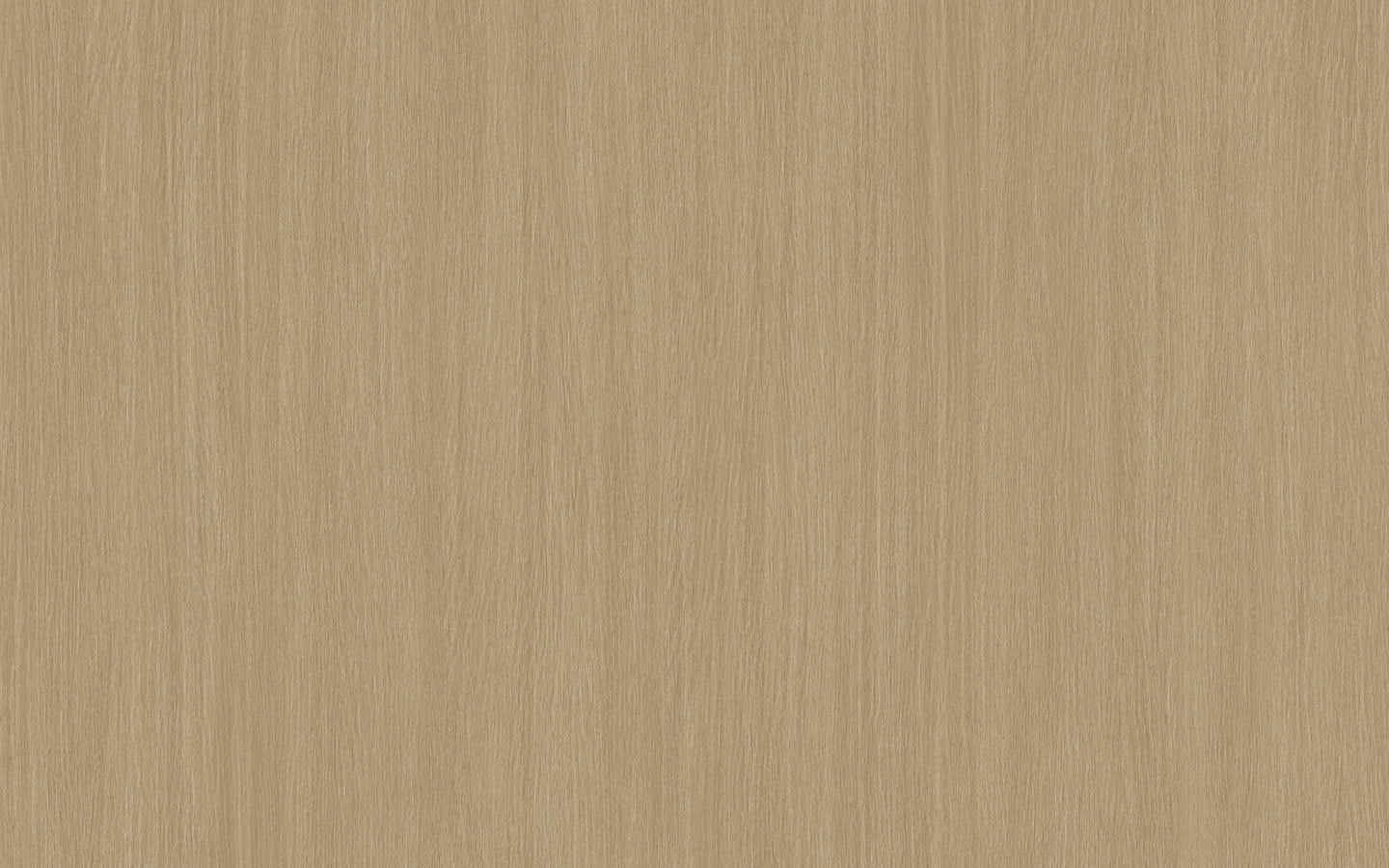

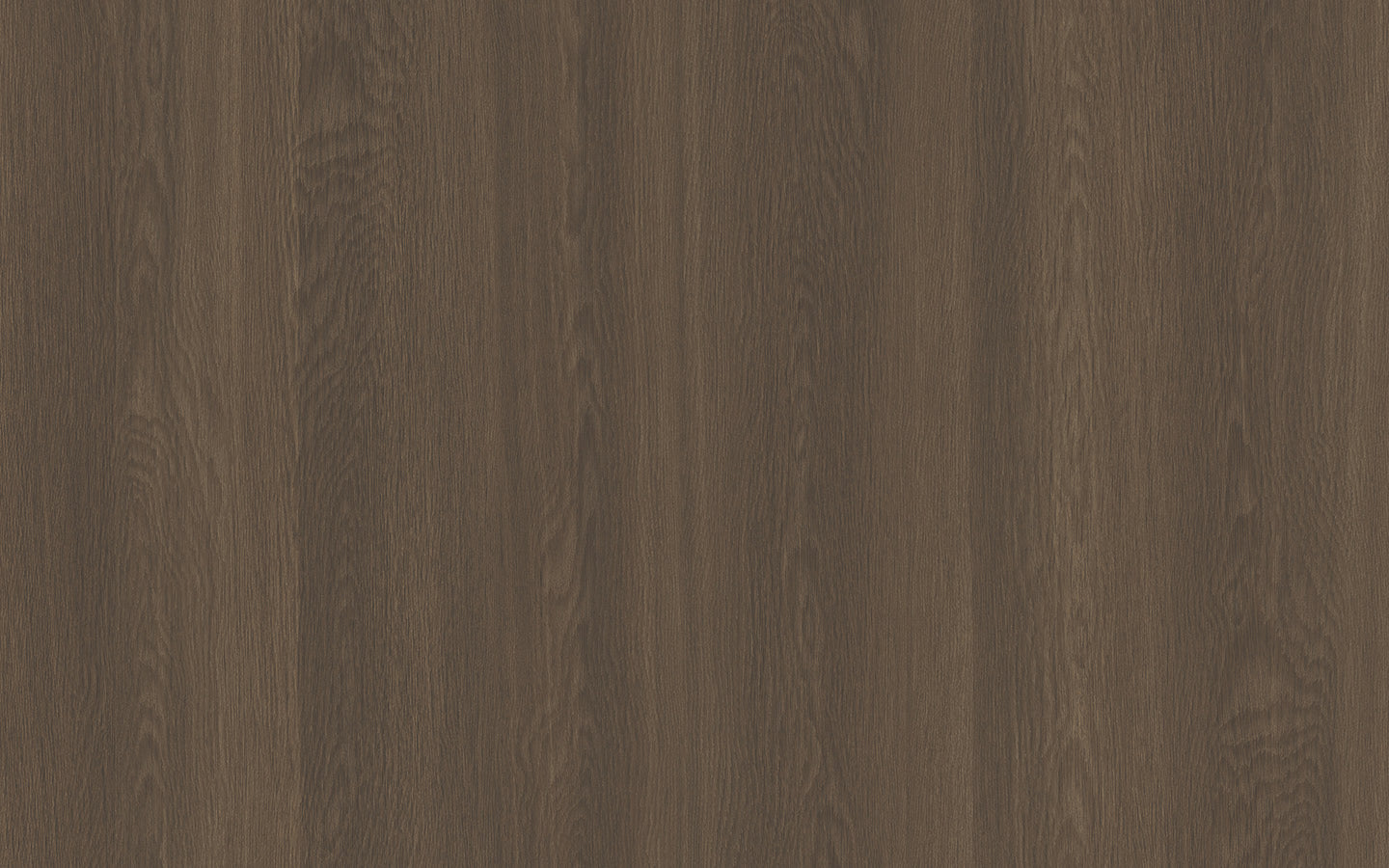

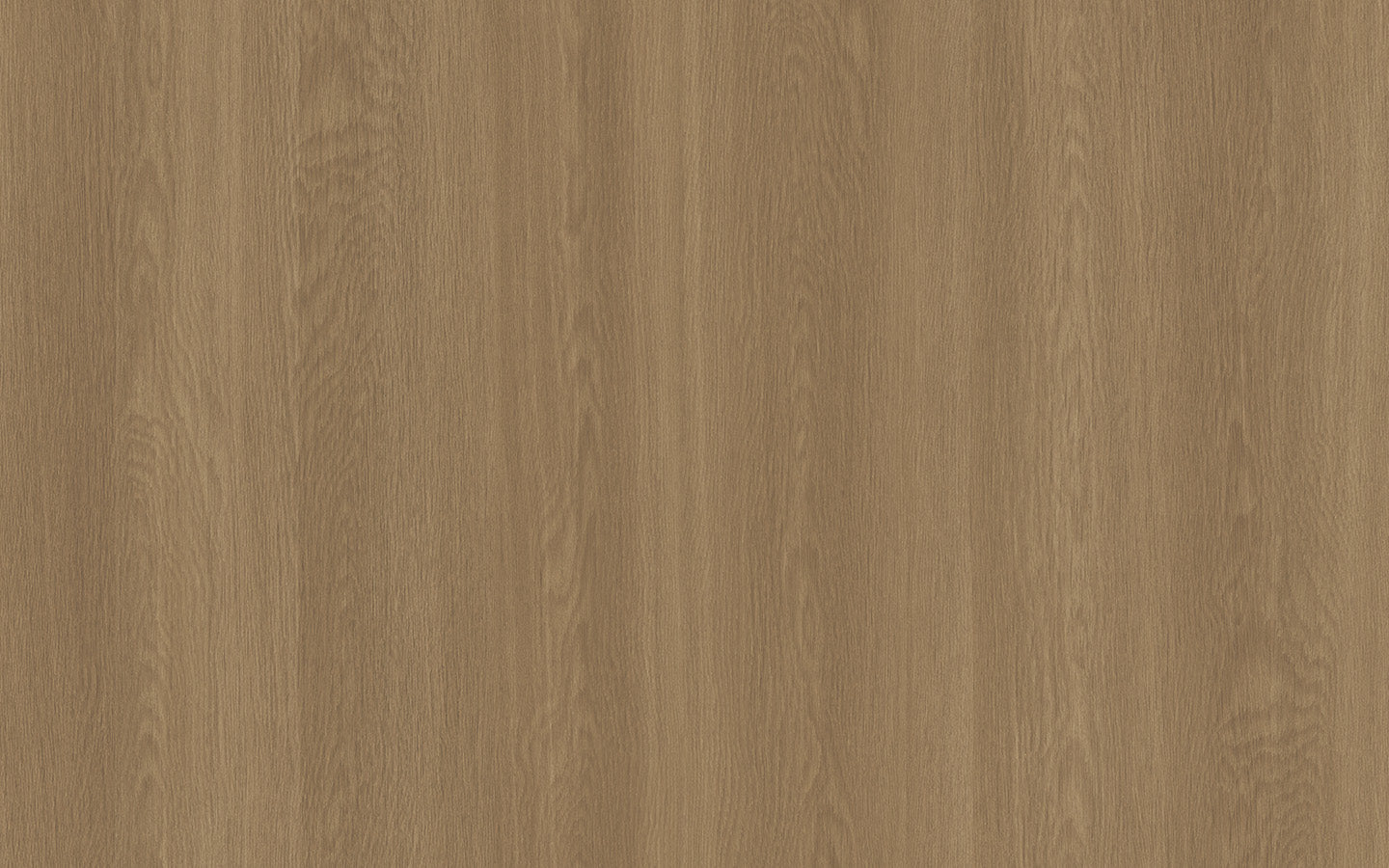

Elevate your interiors with the TEXTURE WOOD architectural film collection, a sophisticated solution where cutting-edge innovation meets the natural beauty of wood. Designed to emulate the authentic depth and grain of natural wood, this collection offers timeless character without the cost and maintenance of traditional wood applications.
Key Features:
• Dimensional Realism: Advanced embossing mimics intricate wood grains, revealing subtle details as light moves across the surface.

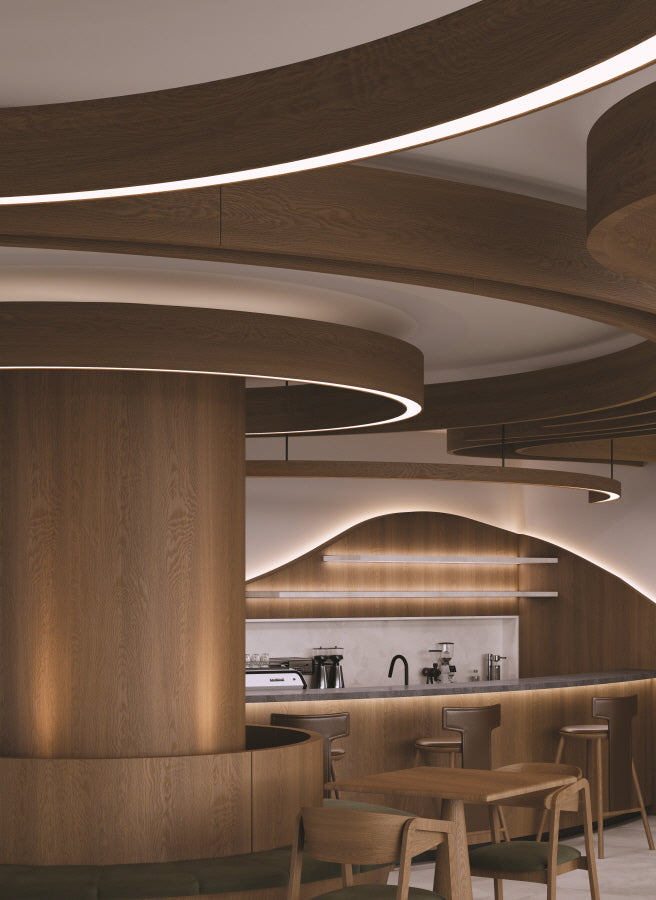

• Versatile Design Solutions: Ideal for walls, cabinetry, fixtures, and custom furnishings, adapting effortlessly to any design vision.
• Built to Endure: Engineered for exceptional durability, resisting scratches, stains, and everyday wear.
• Sustainable Craftsmanship: Made from eco-conscious materials, supporting environmentally responsible design.
• Effortless Installation: Designed for seamless application, achieving a flawless wood look without complex carpentry.
Transform any space into a masterpiece with the TEXTURE WOOD collection—offering the perfect balance of luxury, practicality, and enduring beauty.
Specifications
Collection Name | Casamonte Architectural Film |
|---|---|
Product | High-performance interior film with self-adhesive backing, suitable for various substrates and designed for ease of application on both flat and irregular surfaces. |
Composition | • Permanent & Yellow Adhesive (Flame Retardant) • Permanent & Clear Adhesive (Non-Flame Retardant) • Single Side PE coated release liner (Air-free) • Non-PE coated release liner (Air-free, PW, BW, NW, NE) |
Application Temperature | 15~25°C |
Compatible Substrates | • Iron, painted board • MDF • Calcium silicate board • Veneer • Stainless Steel • Aluminum • Melamine - baked steel board |
Dimensions | • Roll Sizes: • 122cm (48in) x 50M/R • 122cm (48in) x 30M/R (PW/NS/SF) • Thickness: 0.15~0.60mm (excluding release paper) |
Installation | • Maintain ambient temperature at 15-25°C for 72 hours before and 48 hours after installation • Use LX Hausys PM-04 primer for best adhesion • Install using overlapping method to prevent shrinkage • Maintain consistency in lot numbers • Clean and sand adherend surface thoroughly |
Storage | • 2 years shelf life from production date • Store in cool, dry place away from high temperature, humidity, and direct sunlight • Recommended storage: 20°C, 50% R.H. |
Performance | • Tensile Strength: (L)150350 / (W)100350 kgf/cm² (ASTM 882) • Elongation: (L)0400% / (W)0400% (ASTM 882) • Adhesion (24hr): ≥ 1,000g/in (180° peeling, PSTC-1) • Dimensional Stability: 0.8mm (100°C Oven, 2hr, adhered to aluminum plate) |
Primer | LX Primer (Water Based) - PM-04 |
Disclaimer | • Product specifications may change without notice • Variations in thickness may occur due to different embossing effects • Strong scratching or rubbing of treated surfaces may damage the ink layer |
